He 24 Pin Power Supply Connector Manufacturer

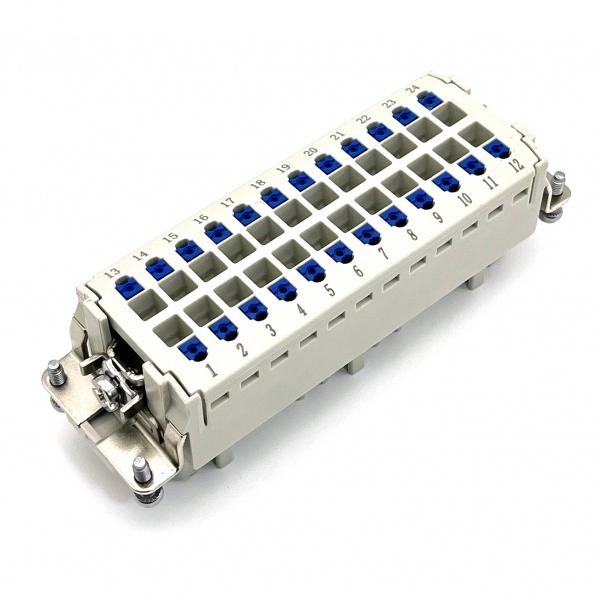

He 24 Pin Power Supply Connector

2024-04-03 14:09:32

Overview

Enhance your connectivity solutions with the HE-024-S Ferrule, a precision-engineered component designed to optimize performance in various applications. Crafted with meticulous attention to detail and superior materials, this ferrule is the epitome of reliability, durability, and versatility.

Unrivaled Precision: The HE-024-S Ferrule ensures impeccable precision in every connection. Its meticulously crafted design guarantees a snug fit, minimizing signal loss and maximizing transmission efficiency.

Premium Construction: Constructed from high-quality materials, including durable metals and precision coatings, the HE-024-S Ferrule offers exceptional durability and longevity. It withstands the rigors of demanding environments, ensuring uninterrupted performance over extended periods.

Optimized Connectivity: With its innovative design and superior materials, the HE-024-S Ferrule delivers optimized connectivity across a wide range of applications. Whether used in telecommunications, data centers, or industrial settings, it provides reliable performance and seamless integration.

Product Parameters Outer Shell Size:Compatible with 24B Shell
Insert
Connector Pin Count	Number Of Contacts	24
Electrical Data per EN 61984	Electrical Of Contacts
Power Area
Rated Current	Rated Current	16A
Rated Voltage	Rated Voltage	500V
Rated Impulse Voltage	Rated Impulse Voltage	6KV
Pollution Degree	Pollution Degree	3
Material	Materia	Polycarbonate
Operating Temperature Range	Limiting Temperatures	40℃~125℃
UL94 Flammability Rating	Flammability Acc.To UL94	V0
Insertion/Withdrawal Cycles	MecHEnical Working Life-mating Cycles	2500
Pin
Material	Materia	Copper Alloy
Surface Treatment	Surface	Silver Plated
Contact Resistance	Contact Resistance	≤3m
Connection Type		Spring Clip Connection
Wire Specifications	_Wire Gauge	0.14-2.5mm²
-AWG	AWG	26-14
-Stripping Length	Stripping length	7.9mm
Insulation Resistance (Q)	Insulation Resistance	10¹0

Ease of Installation: Designed for ease of installation, the HE-024-S Ferrule streamlines the connection process, saving time and effort. Its user-friendly design ensures hassle-free installation, even in tight spaces or challenging environments.

Versatile Compatibility: Compatible with a variety of cables and connectors, the HE-024-S Ferrule offers versatile compatibility, making it suitable for diverse applications. Whether used in fiber optic systems, network installations, or telecommunications equipment, it delivers consistent performance and reliability.

Upgrade to HE-024-S Ferrule: Elevate your connectivity solutions with the HE-024-S Ferrule. Engineered for precision, durability, and versatility, it's the perfect choice for demanding applications where reliability and performance are paramount. Experience seamless connectivity and superior performance with the HE-024-S Ferrule.
