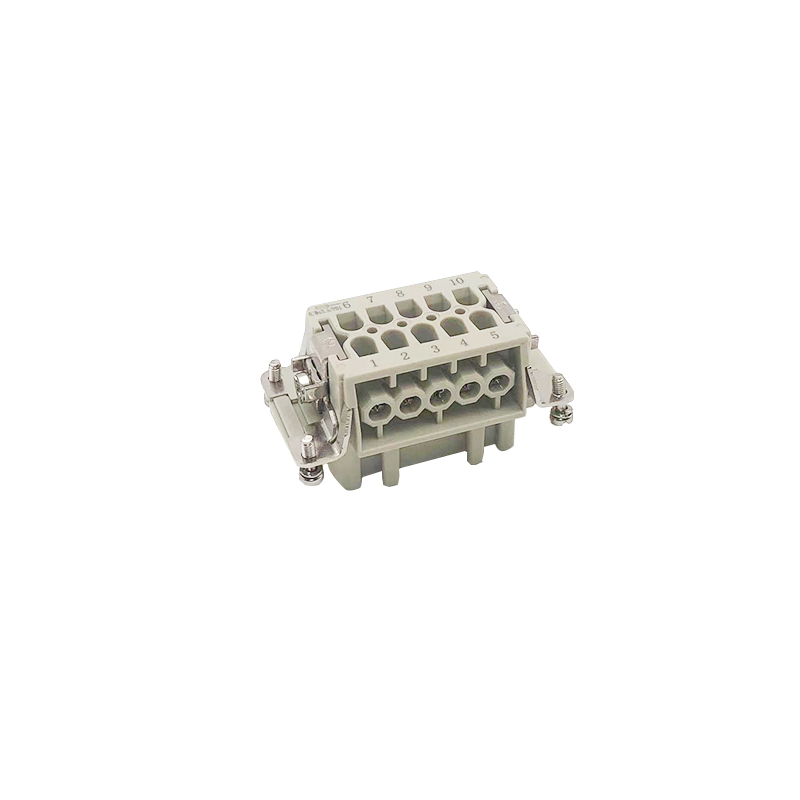

HE-010-F Heavy-Duty Connector, 10+PE Contacts, 16A, 500V, Polycarbonate Housing, Gold/Silver-Plated Pins, Screw Connection
Material: Copper alloy
Surface Treatment: Gold/Silver-plated
Contact Resistance: ≤1mΩ
Connection Method: Screw connection
Wire Gauge: 0.14mm² to 2.5mm²
Tightening Torque: 0.5Nm
Stripping Length: 7.0mm
Overview
Product Overview:
The HE-010-F heavy-duty connector is designed for high reliability and performance in demanding industrial environments. This connector matches the 10B housing and offers a 10+PE contact configuration, ensuring stable and reliable electrical connections.

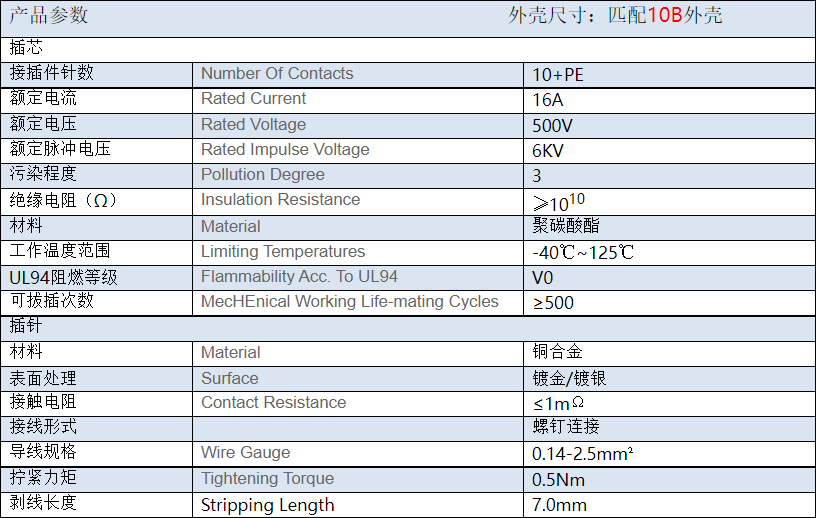

Key Features:
- Contacts Configuration: 10+PE
- Rated Current: 16A, suitable for high-current applications
- Rated Voltage: 500V, ensuring safe operation in high-voltage environments
- Rated Impulse Voltage: 6KV, enhancing resistance to transient voltages
- Pollution Degree: 3, suitable for highly polluted environments
- Material: High-quality polycarbonate, offering excellent mechanical strength and chemical resistance
- Operating Temperature Range: -40℃ to 125℃, adaptable to a wide range of temperature variations
- Flammability Rating: Complies with UL94 V0 standard, ensuring a high level of fire resistance
- Mechanical Working Life: ≥500 mating cycles, ensuring long-term reliable use
Pin Characteristics:
- Material: Copper alloy, providing excellent conductivity and durability
- Surface Treatment: Gold/Silver-plated, ensuring low contact resistance and high reliability
- Contact Resistance: ≤1mΩ, guaranteeing efficient transmission of signals and power
- Connection Method: Screw connection, allowing for quick and easy installation
- Wire Gauge: Supports wires from 0.14mm² to 2.5mm²
- Tightening Torque: 0.5Nm, ensuring secure connections
- Stripping Length: 7.0mm, suitable for standard wire stripping requirements
Applications:
The HE-010-F heavy-duty connector is widely used in industrial automation, machinery manufacturing, power equipment, transportation, and other fields that require high reliability and high-performance connections.
Choose the HE-010-F heavy-duty connector to ensure your system operates reliably even in the most demanding environments.
