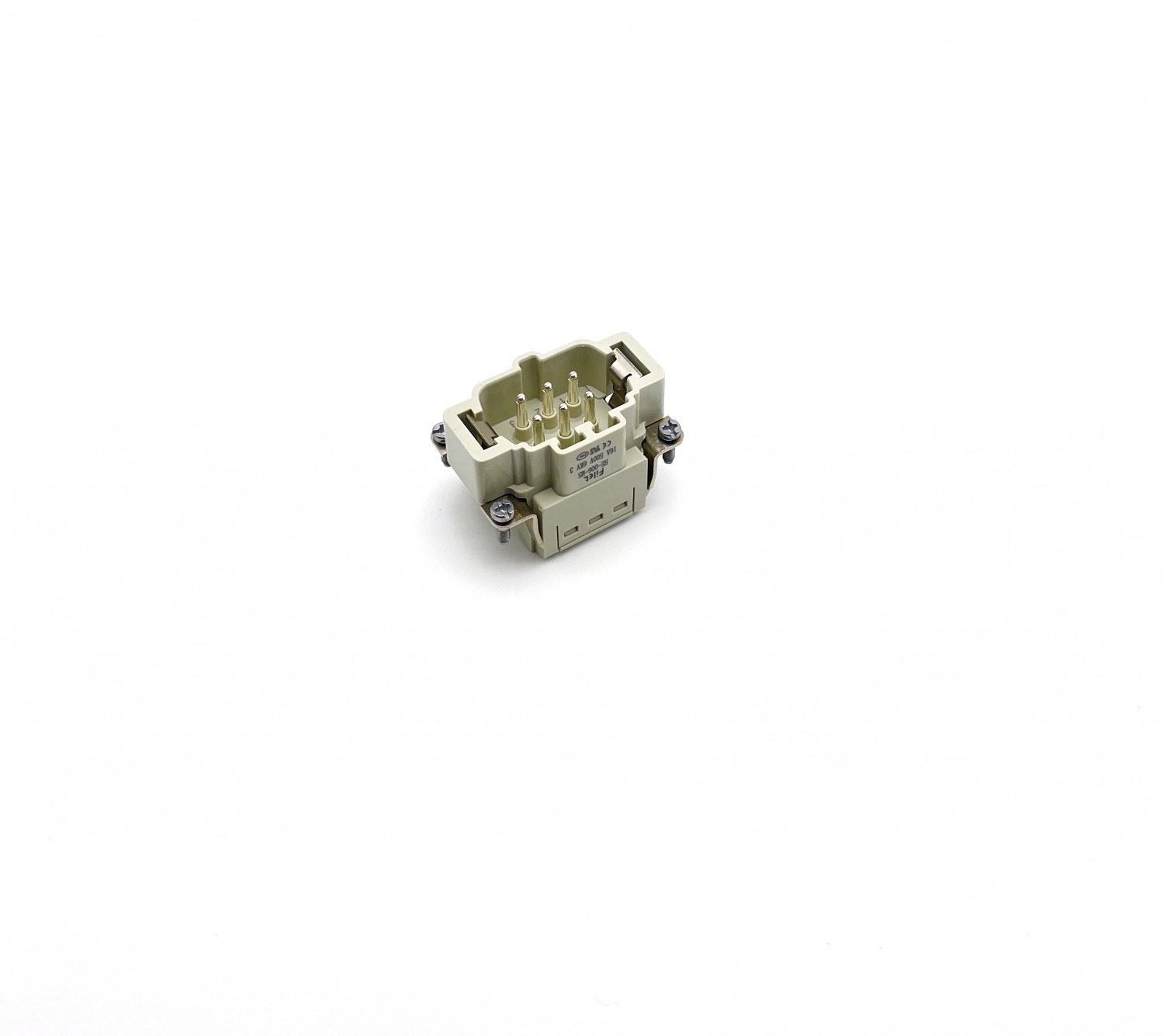

HE-006-S 6-Pin Plug Connecto

2024-04-29 18:51:15

MODEL:HE-006-MS,HE-006-FS

Sea Port:Xiamen

Monthly Supply Quantity:100,000 Piece

Packing Method:1 piece per bag

Overview

Product Description:

The 6-Pin Plug Connector is a reliable electrical connector designed for various industrial applications. It features a 6-pin configuration and is compatible with 6B connector shells. This connector is engineered to meet EN 61984 electrical data standards and is suitable for use in power distribution systems.


Features:

Electrical Data (EN 61984):

Rated Current: 16A

Rated Voltage: 500V

Rated Impulse Voltage: 6KV

Pollution Degree: 3

Material: Made from high-quality polycarbonate (PC) material, providing excellent mechanical strength and electrical insulation.

Operating Temperature Range: -40°C to 125°C

Flammability Rating: UL94 V0

Mechanical Working Life: ≥500 mating cycles

Contact Material: Copper alloy

Surface: Silver plated

Contact Resistance: ≤3mΩ

Wire Gauge (AWG): 26-14

Stripping Length: 7.9mm

Insulation Resistance: >10^9 Ω

Number Of Contacts: 6

Connector Type: Plug

Connection Type: Spring-loaded contact

Wire Connection: Screw connection

Suitable for use with 6B connector shells


Specifications:

Material: Polycarbonate (PC)

Rated Current: 16A

Rated Voltage: 500V

Rated Impulse Voltage: 6KV

Pollution Degree: 3

Operating Temperature Range: -40°C to 125°C

Flammability Rating: UL94 V0

Mechanical Working Life: ≥500 mating cycles

Contact Material: Copper alloy

Surface: Silver plated

Contact Resistance: ≤3mΩ

Wire Gauge: 26-14 AWG

Stripping Length: 7.9mm

Insulation Resistance: >10^9 Ω

Number Of Contacts: 6

Connector Type: Plug

Connection Type: Spring-loaded contact

Wire Connection: Screw connection

Dimensions: Compatible with 6B connector shells


The 6-Pin Plug Connector is a versatile and reliable solution for electrical connections in industrial applications. With its durable construction and high-performance specifications, it ensures secure and stable connections in power distribution systems.

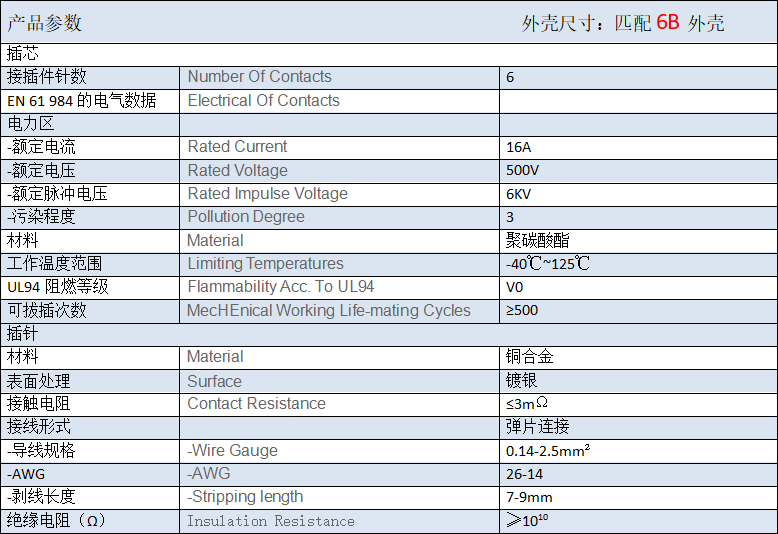

技术参数HE-006-FSHE-006-MS
