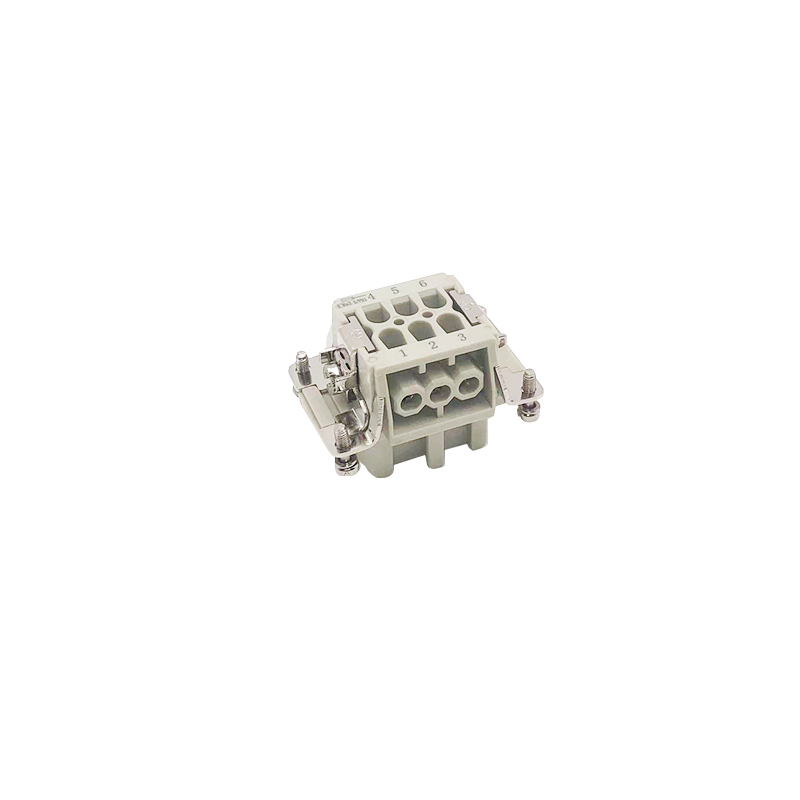

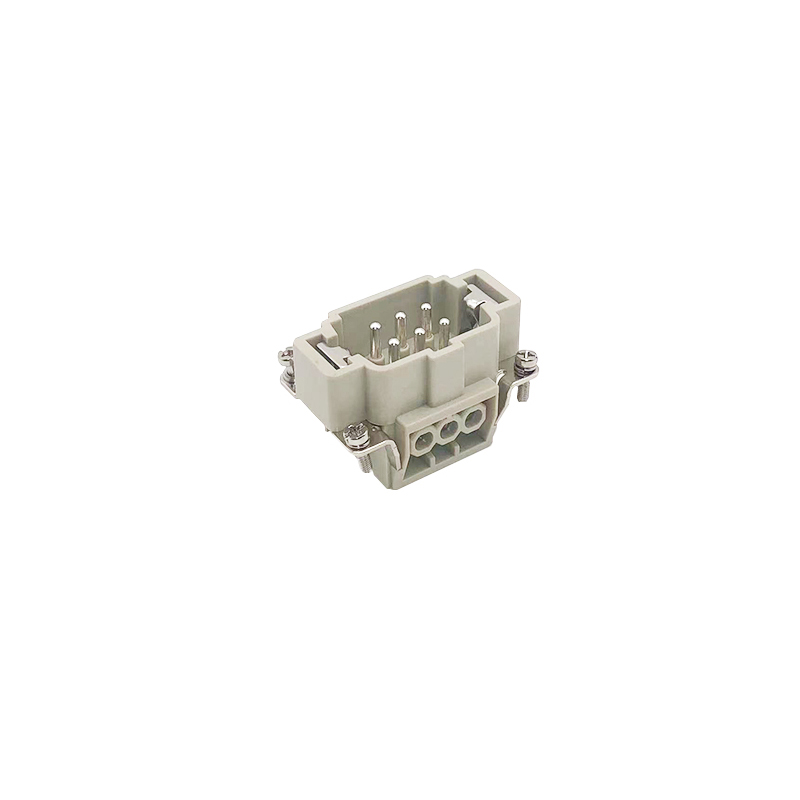

HE-006 Product Name: 6B Plug Connector with Insert

2024-04-29 18:46:29

MODEL:HE-006-F,HE-006-M

Sea Port:Xiamen

Monthly Supply Quantity:100,000 Piece

Packing Method:1 piece per bag

Overview

Product Description:

The 6B Plug Connector with Insert is a high-quality electrical connector designed for reliable and secure connections. It features a 6B shell size, making it compatible with 6B connector shells. This connector is equipped with 6+PE contacts and is rated for a maximum current of 16A and a maximum voltage of 500V.


Features:

High-Quality Construction: Made from durable polycarbonate (PC) material, this connector offers excellent mechanical strength and electrical insulation.

Rated Impulse Voltage: With a rated impulse voltage of 6KV, this connector provides reliable performance in demanding electrical applications.

Pollution Degree: Rated for pollution degree 3, this connector is suitable for use in moderately polluted environments.

Insulation Resistance: The insulation resistance is greater than or equal to 10^10 Ω, ensuring safe and reliable operation.

Operating Temperature Range: This connector is designed to withstand temperatures ranging from -40°C to 125°C, ensuring reliable performance in various operating conditions.

UL94 Flame Retardant Rating: The connector's housing material has a UL94 V0 flame retardant rating, providing enhanced safety.

Long Mechanical Working Life: With a mechanical working life of at least 500 mating cycles, this connector offers long-term reliability.

Gold/Silver Plated Contacts: The contacts are made of copper alloy and are gold/silver plated for optimal conductivity and corrosion resistance.

Screw Connection: Features screw connection for easy and secure wiring.


Specifications:

Number of Contacts: 6+PE

Rated Current: 16A

Rated Voltage: 500V

Rated Impulse Voltage: 6KV

Pollution Degree: 3

Insulation Resistance: ≥10^10 Ω

Material: Polycarbonate (PC)

Operating Temperature Range: -40°C to 125°C

Flammability Rating: UL94 V0

Mechanical Working Life: ≥500 mating cycles

Contact Material: Copper alloy

Surface: Gold/silver plated

Contact Resistance: ≤1mΩ

Wire Gauge: 0.14-2.5mm²

Tightening Torque: 0.5Nm

Stripping Length: 7.0mm


The 6B Plug Connector with Insert offers reliable electrical connections and is suitable for a wide range of industrial applications.

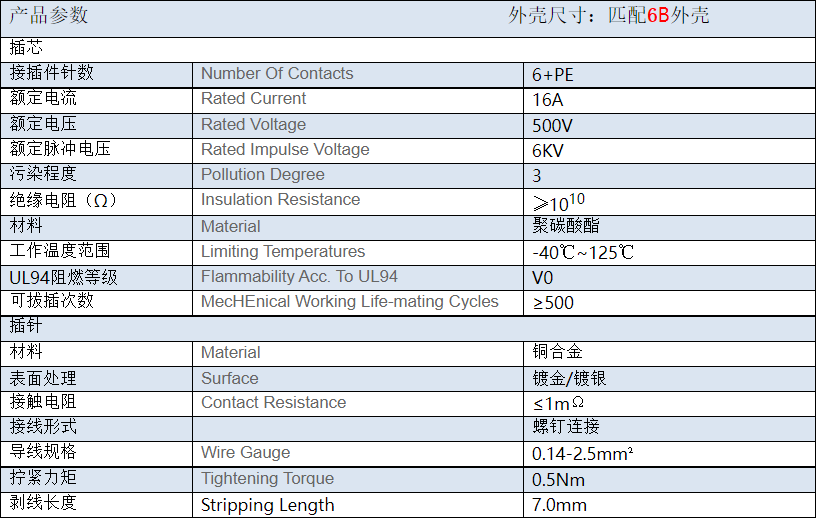

HE-006-FHE-006-M技术参数
