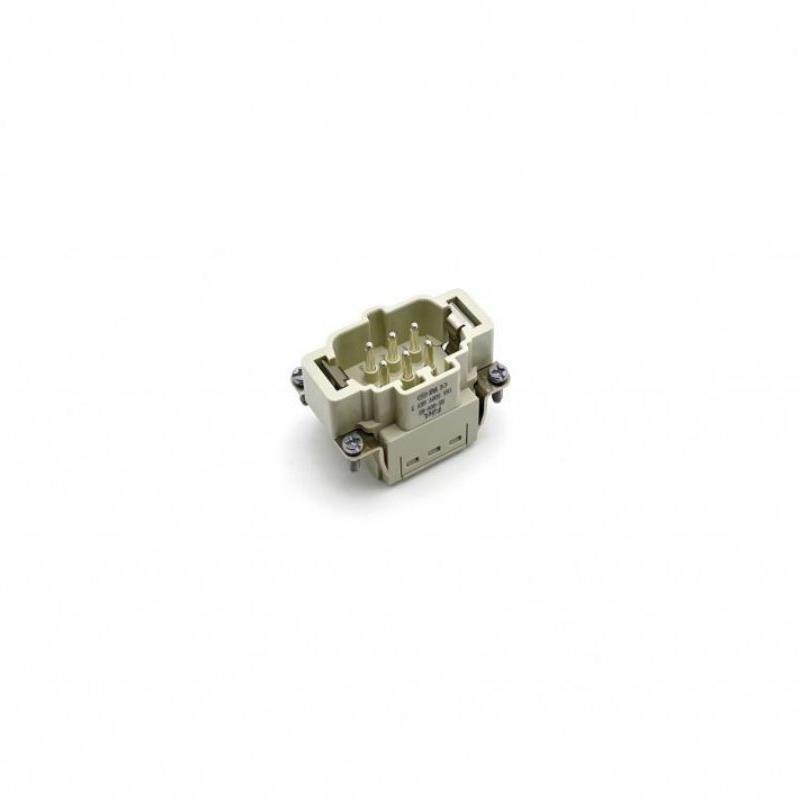

HE-006-MS Heavy Duty Connector 6 Pins 16A 500V Polycarbonate Housing Silver-Plated Copper Alloy Contacts
Overview

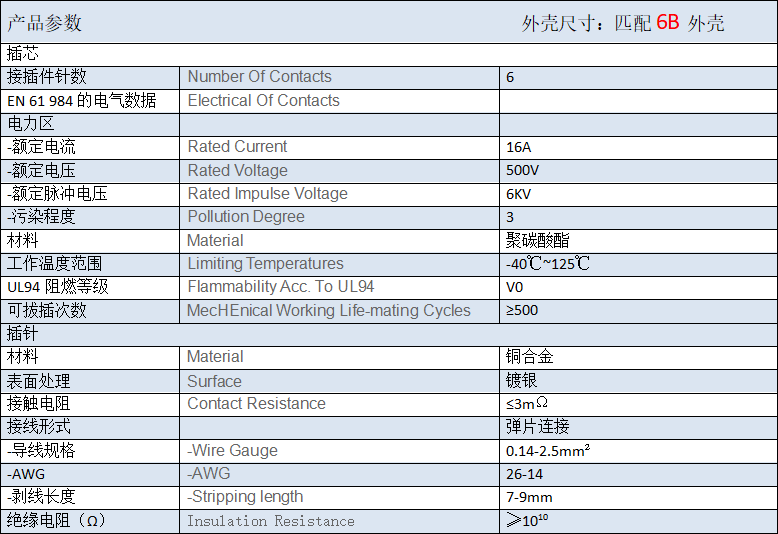

Product Parameters:
Housing Size: Compatible with 6B Housing
Number of Contacts: 6
Electrical Parameters (according to EN 61 984):
Power Section:
Rated Current: 16A
Rated Voltage: 500V
Rated Impulse Voltage: 6KV
Pollution Degree: 3
Material:
Housing Material: Polycarbonate
Operating Temperature Range: -40℃ to 125℃
Flammability Rating: UL94 V0
Mechanical Working Life (Mating Cycles): ≥500
Contact Parameters:
Material: Copper Alloy
Surface Treatment: Silver Plated
Contact Resistance: ≤3mΩ
Connection Type: Spring Clip Connection
Wire Gauge: 0.14-2.5mm² (AWG 26-14)
Stripping Length: 7-9mm
Insulation Resistance: ≥10¹⁰Ω
The HE-006-MS heavy duty connector is engineered for industrial applications demanding high reliability and performance. Featuring a durable polycarbonate housing and silver-plated copper alloy contacts, it ensures superior electrical performance and a long operational lifespan. Ideal for use in harsh environments and high current and voltage scenarios, this connector guarantees stable and reliable connections.
